Sailing gear and ground tackle

Jeanneau Sun Odyssey 49 2004 for sale

175 000 US$



Sailing Gear

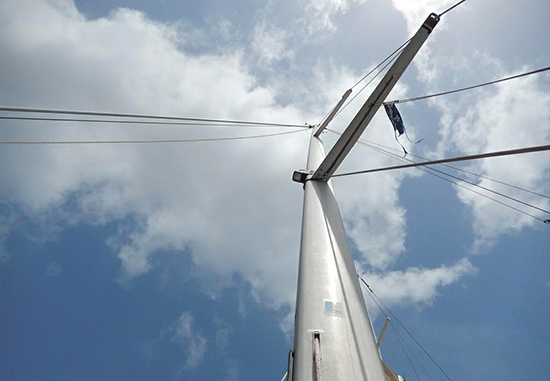

Mast

  • Sparcraft aluminum mast system, deck stepped, dual airfoil spreaders, anodized finish.
  • Separate alternate sail slot and main roller furling sail slot (with plastic lining)

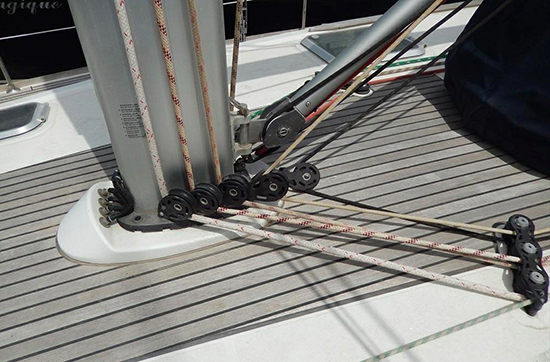

Mast step and support

  • Aluminum step on cabin top.
  • Heavy stainless steel compression post takes the load down to the hull grid structure.

Chainplates

  • Forestay taken to stainless steel stem strap bolted to the stem.
  • Dual backstay taken to stainless steel straps are bolted to the transom.
  • Shrouds taken to stainless steel fittings passing through the deck and to rods on the interior that take the load down to straps bolted to the hull grid structure.

Standing Rig

  • 1 x 19 stainless steel wire

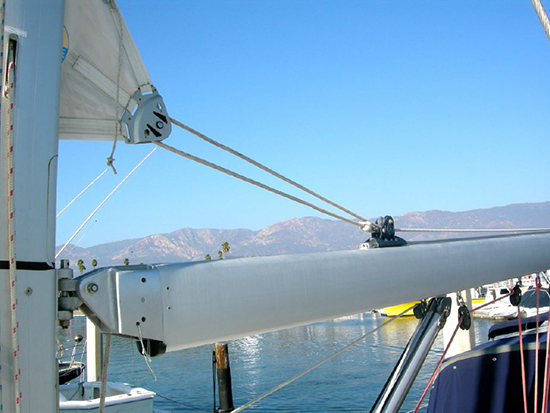

Boom

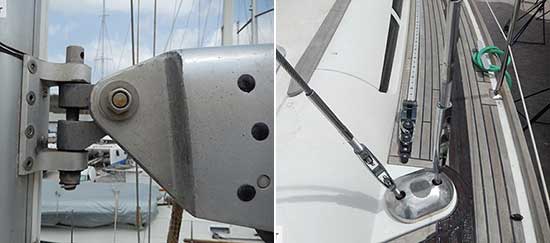

  • Sparcraft aluminum with gooseneck fitting at mast.
  • Boom has a Sparcraft boom support/vang.
  • Mainsheet blocks and SPINLOCK tackle.
  • Harken main sheet traveler.

Running rig

  • Double braid halyards.

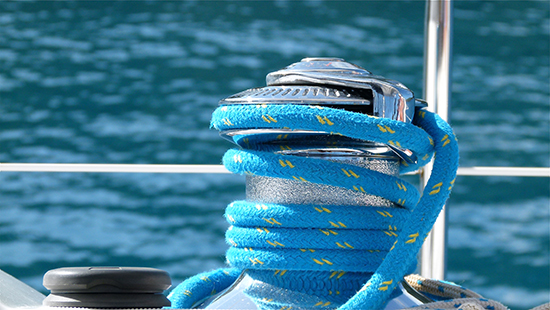

Winches

  • Two Lemar 44ST on cabin top

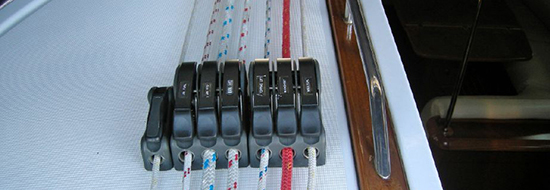

  • 11 Spinlock clutches on cabin top
  • Two Lewmar 54ST electric primary winches

Furling Systems

  • Sparcraft in mast main roller furling system
  • Profurl head stay roller furling

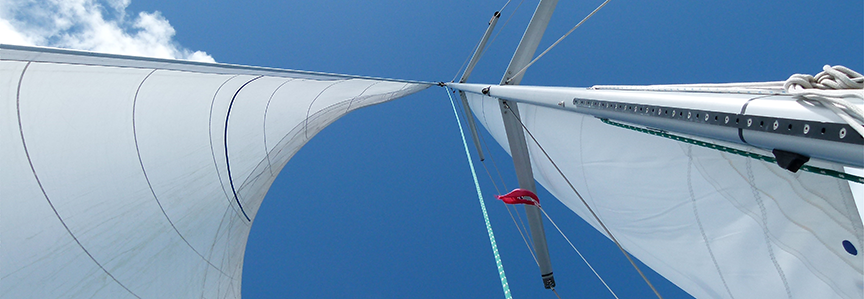

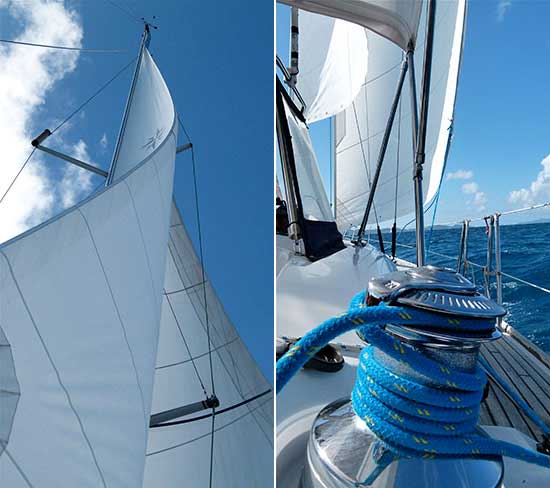

Sails

  • Original Dacron sails from 2004
  • Main Sail on furling system – 560 pi2
  • Genoa 140% on furling system – 670 pi2



Ground Tackle

Anchors

  • Delta about 45 lb anchor on bow roller / 2004; 200′ of 10mm (hi test) chain / 2016
  • Fortress FX16 / 2004 & 70’ of 10mm (hi test) chain + 100′ line / 2004
  • Bruce about 40 lbs anchor / 2004

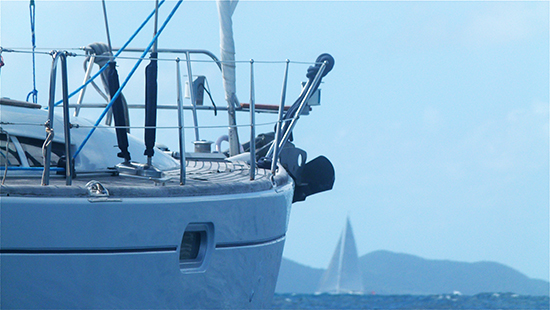

Anchor Platform and Windlass

  • Dual stainless steel rollers built into stem head
  • Lofrans Leopard windlass with forward controls on plug in hand held control box
